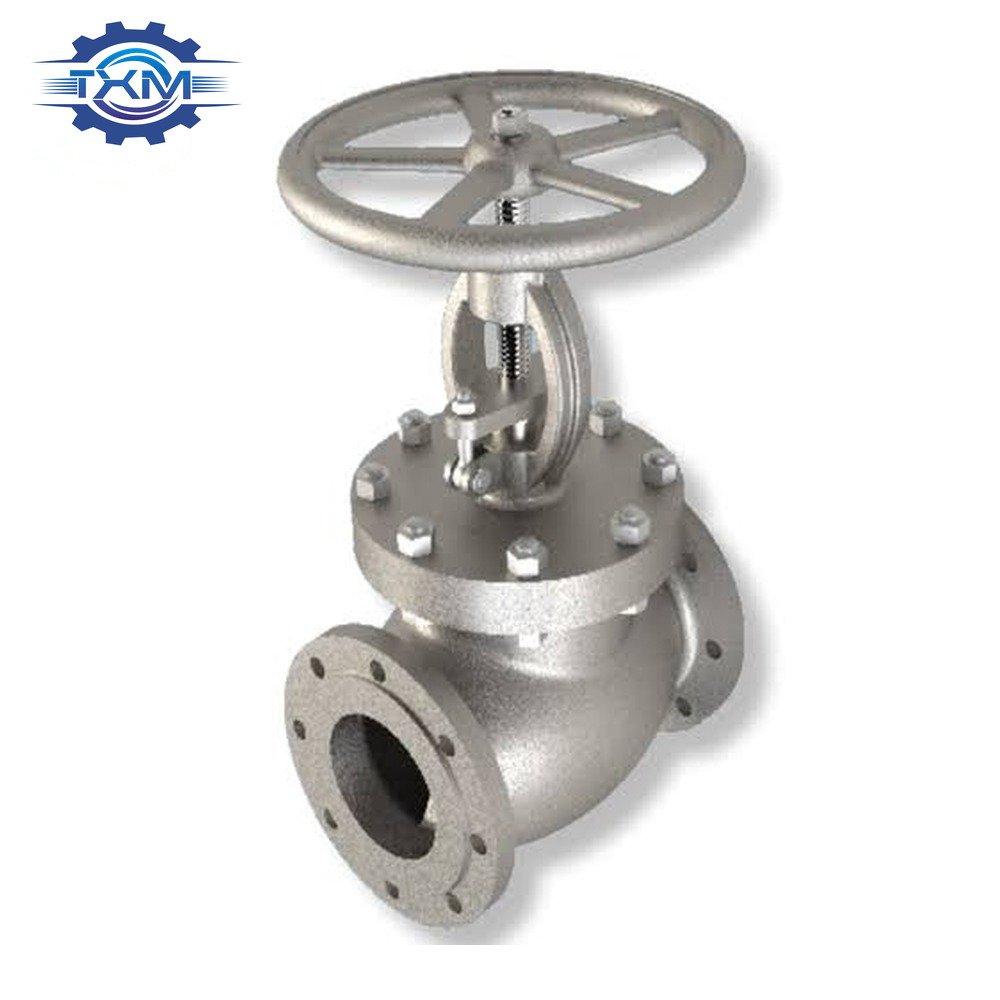

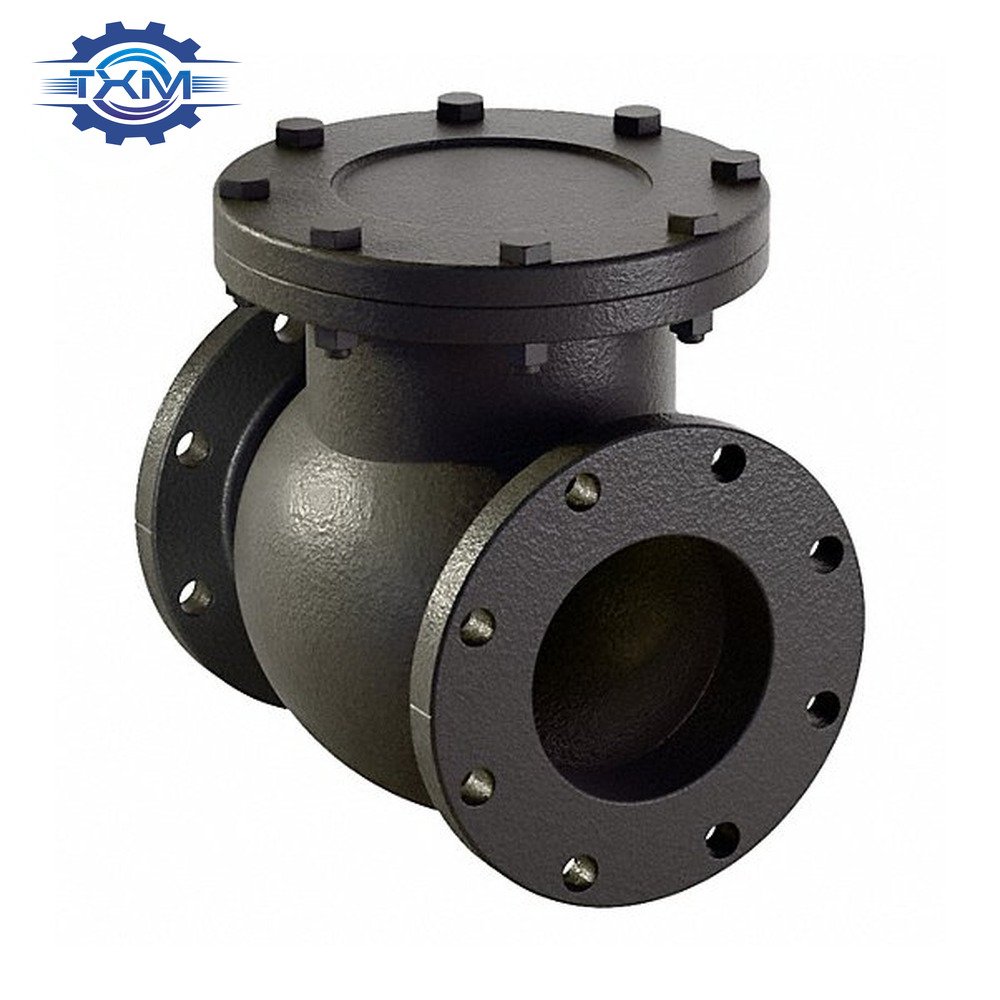

Custom Flanged Valve Body
Custom flanged valve bodies for industrial piping systems, including oil & gas, chemical processing, power generation, water treatment and marine applications. Manufactured according to customer drawings with customizable dimensions, pressure ratings, connection types, materials, CNC machining and surface finishing.
Key Features
- Large-size valve body machining
- Precision flange machining
- Pressure and corrosion resistant
- Multiple material options
- OEM customization available
Materials and Manufacturing Processes
| Item | Available Options |
|---|---|
| Materials | Cast Steel / Stainless Steel / Carbon Steel / Customizable |
| Processes | Casting, CNC Machining, Flange Machining, Drilling, Surface Finishing |
| Dimensions | According to customer 2D/3D drawings |
| Tolerance | Critical dimensions and tolerances according to drawings and project requirements |
| Surface Finishes | Powder coating, galvanizing, plating, passivation, polishing or other finishes as required |
Typical Applications
General Industrial, industrial machinery, OEM equipment and custom fabrication projects.
Quality Inspection
First article inspection, in-process inspection and final inspection are available. Dimensional inspection reports can be provided according to project requirements.
Packaging
VCI bags, rust-preventive protection, dividers, reinforced cartons or export wooden cases are selected according to product size, weight and transportation requirements.
Reference Lead Time
| Order Quantity | Reference Lead Time |
|---|---|
| Up to 1 set | 10 days |
| Up to 5 sets | 20 days |
| Up to 10 sets | 30 days |
Reference only. Final pricing, tooling plan and delivery schedule are confirmed according to drawings, materials, quantity, inspection requirements and project complexity.
Request a Quote
Send us your inquiry and TXMFAB will review your requirements and provide a tailored quotation. If available, you may include reference information such as 2D/3D drawings, material, quantity, tolerances or surface-finish requirements.
