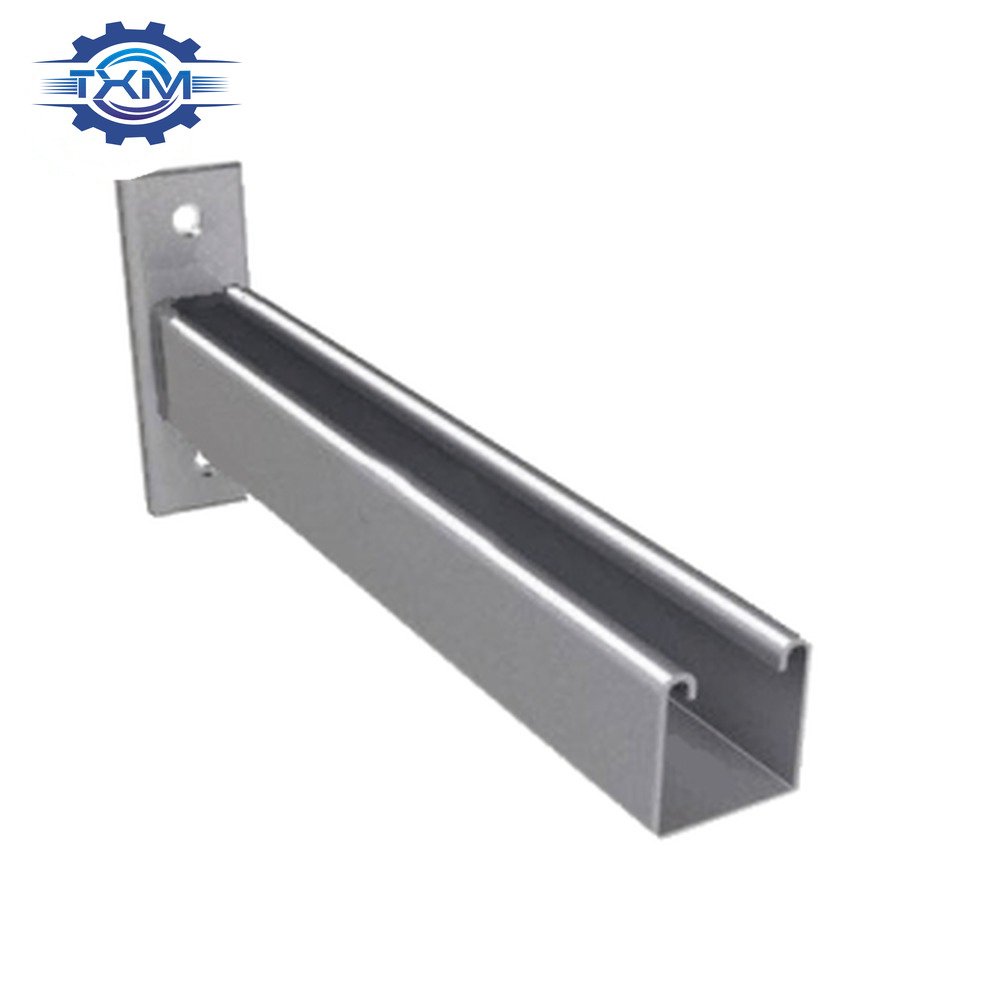

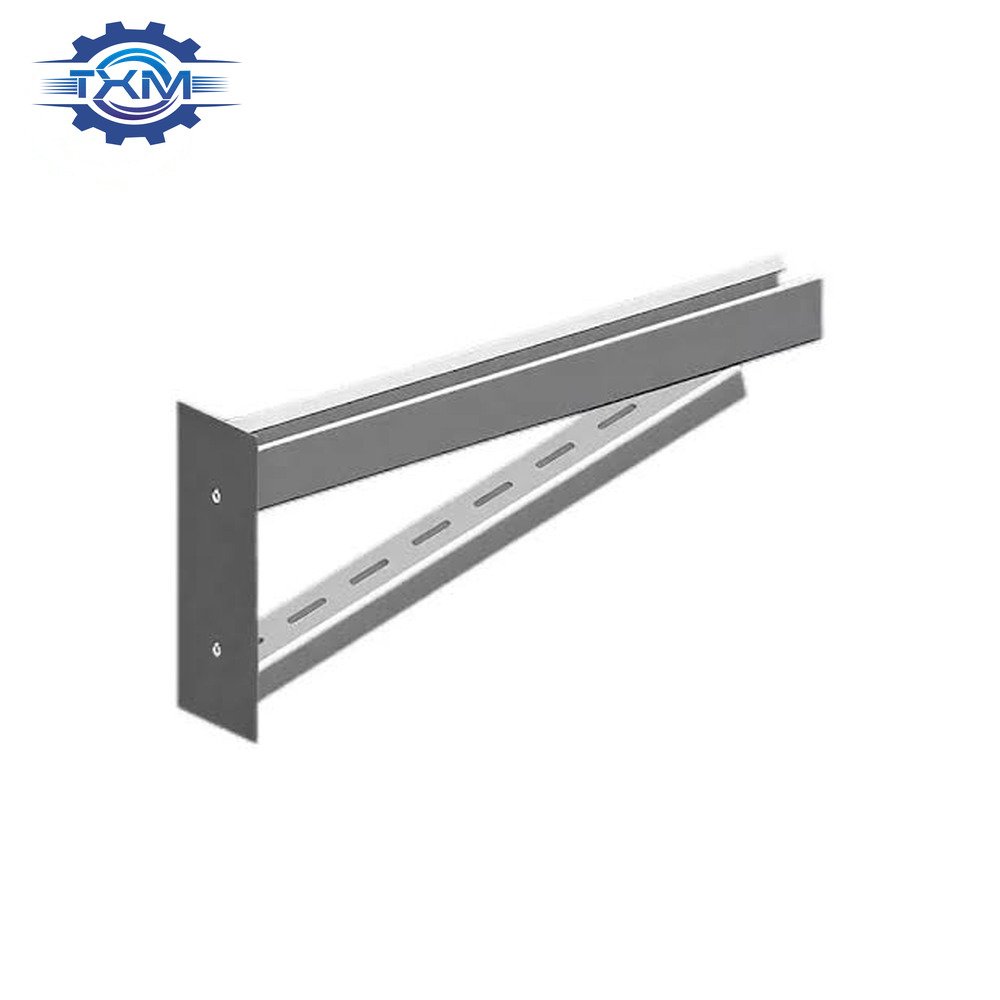

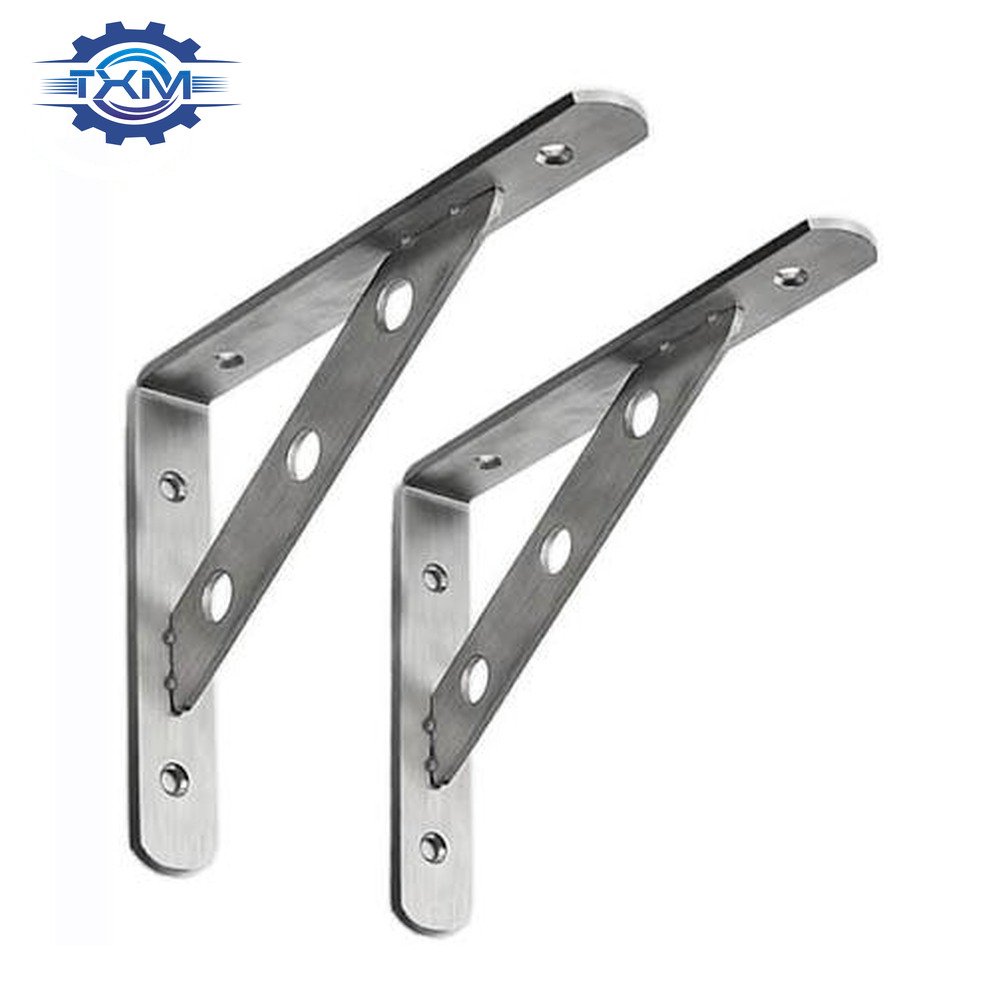

Custom Cantilever Welded Brackets
Manufactured from steel plates and square tubes through precision welding, these custom cantilever welded brackets provide excellent structural strength for industrial equipment, warehouse systems, machinery installation, construction support and OEM fabrication projects. Dimensions, tube specifications, mounting holes and surface finishes can all be customized according to customer drawings.
Key Features
- Heavy-duty tube construction
- Strong welded joints
- High load capacity
- Easy installation
- OEM available
Materials and Manufacturing Processes
| Item | Available Options |
|---|---|
| Materials | Carbon Steel / Stainless Steel / Customizable |
| Processes | Laser Cutting, Tube Cutting, Welding, Drilling |
| Dimensions | According to customer 2D/3D drawings |
| Tolerance | Critical dimensions and tolerances according to drawings and project requirements |
| Surface Finishes | Powder coating, galvanizing, plating, passivation, polishing or other finishes as required |
Typical Applications
General Industrial, industrial machinery, OEM equipment and custom fabrication projects.
Quality Inspection
First article inspection, in-process inspection and final inspection are available. Dimensional inspection reports can be provided according to project requirements.
Packaging
VCI bags, rust-preventive protection, dividers, reinforced cartons or export wooden cases are selected according to product size, weight and transportation requirements.
Reference Lead Time
| Order Quantity | Reference Lead Time |
|---|---|
| Up to 1 set | 10 days |
| Up to 5 sets | 20 days |
| Up to 10 sets | 30 days |
Reference only. Final pricing, tooling plan and delivery schedule are confirmed according to drawings, materials, quantity, inspection requirements and project complexity.
Request a Quote
Send us your inquiry and TXMFAB will review your requirements and provide a tailored quotation. If available, you may include reference information such as 2D/3D drawings, material, quantity, tolerances or surface-finish requirements.
