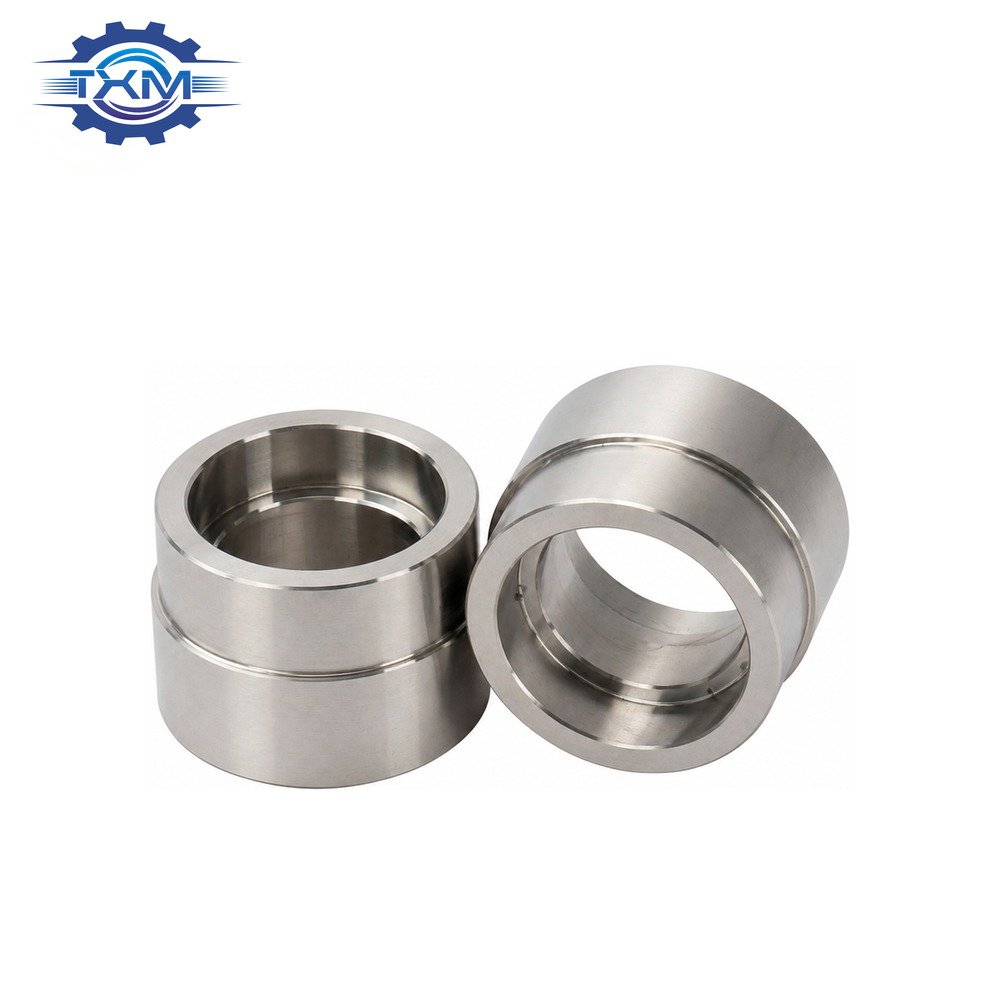

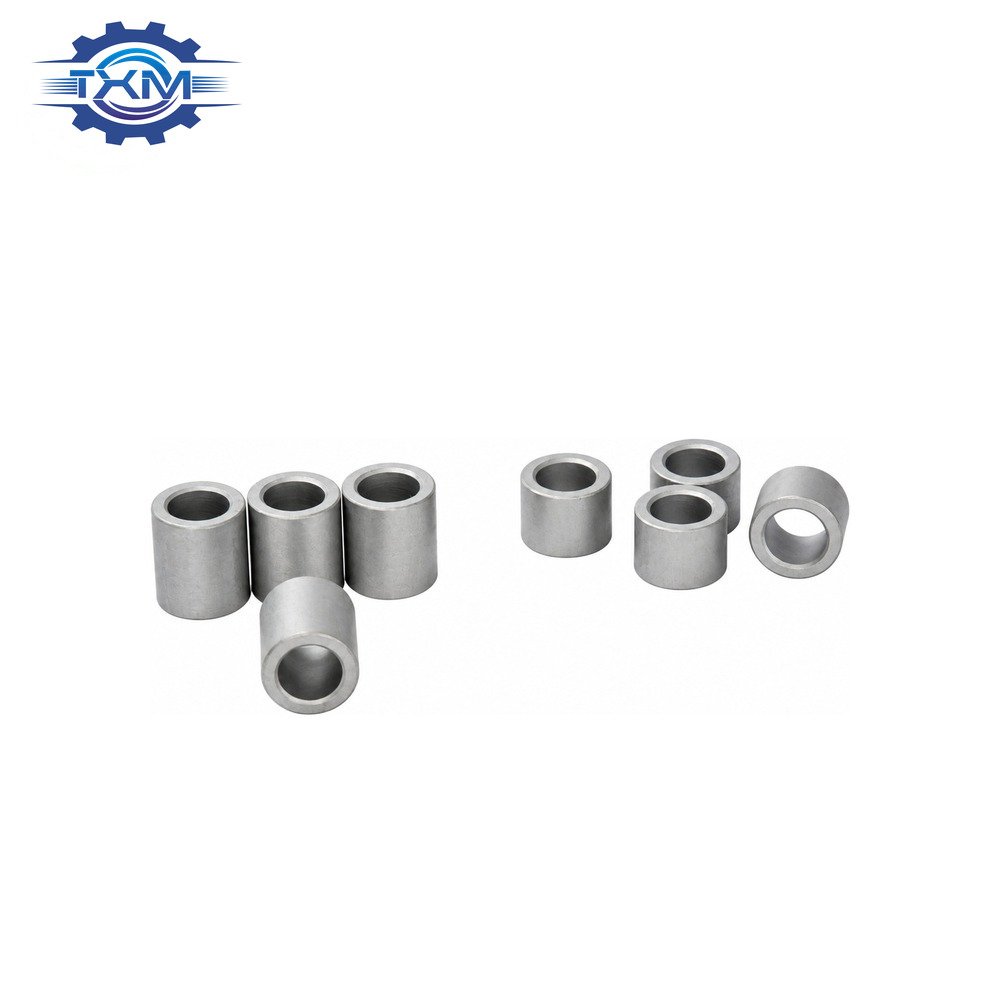

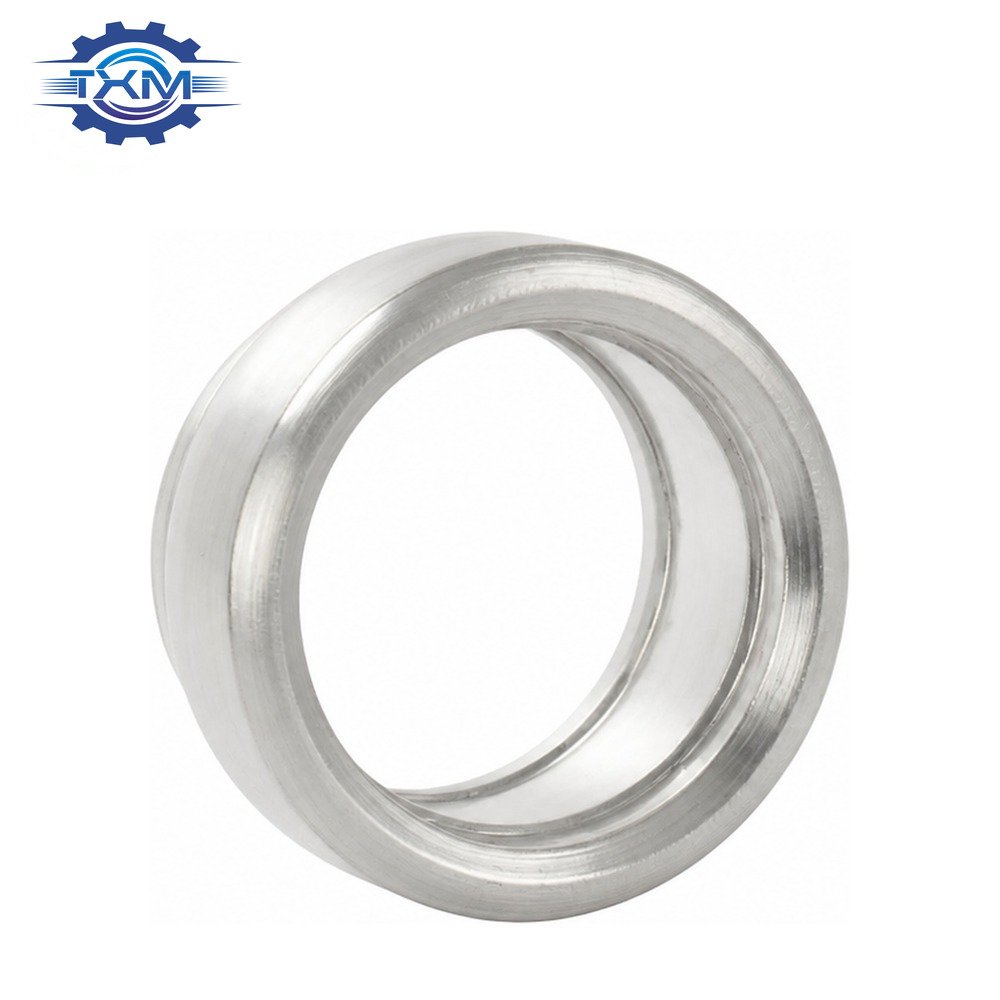

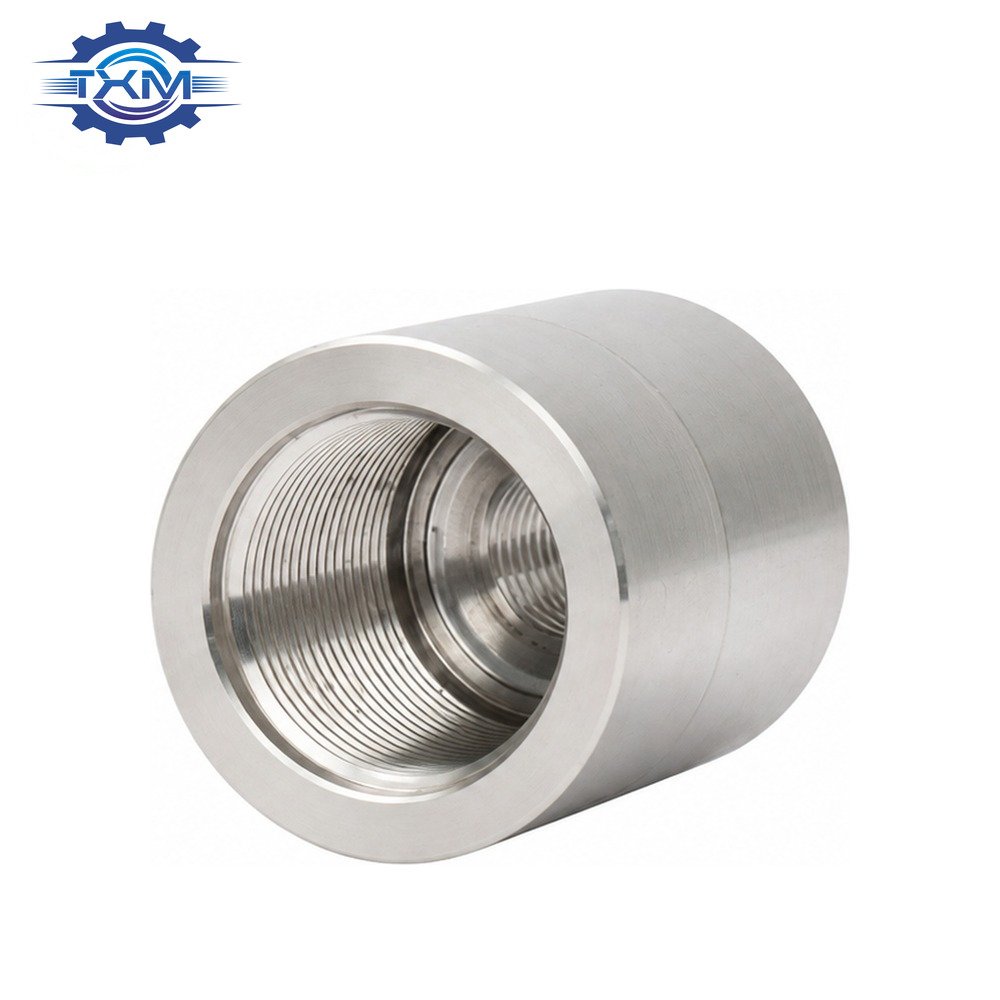

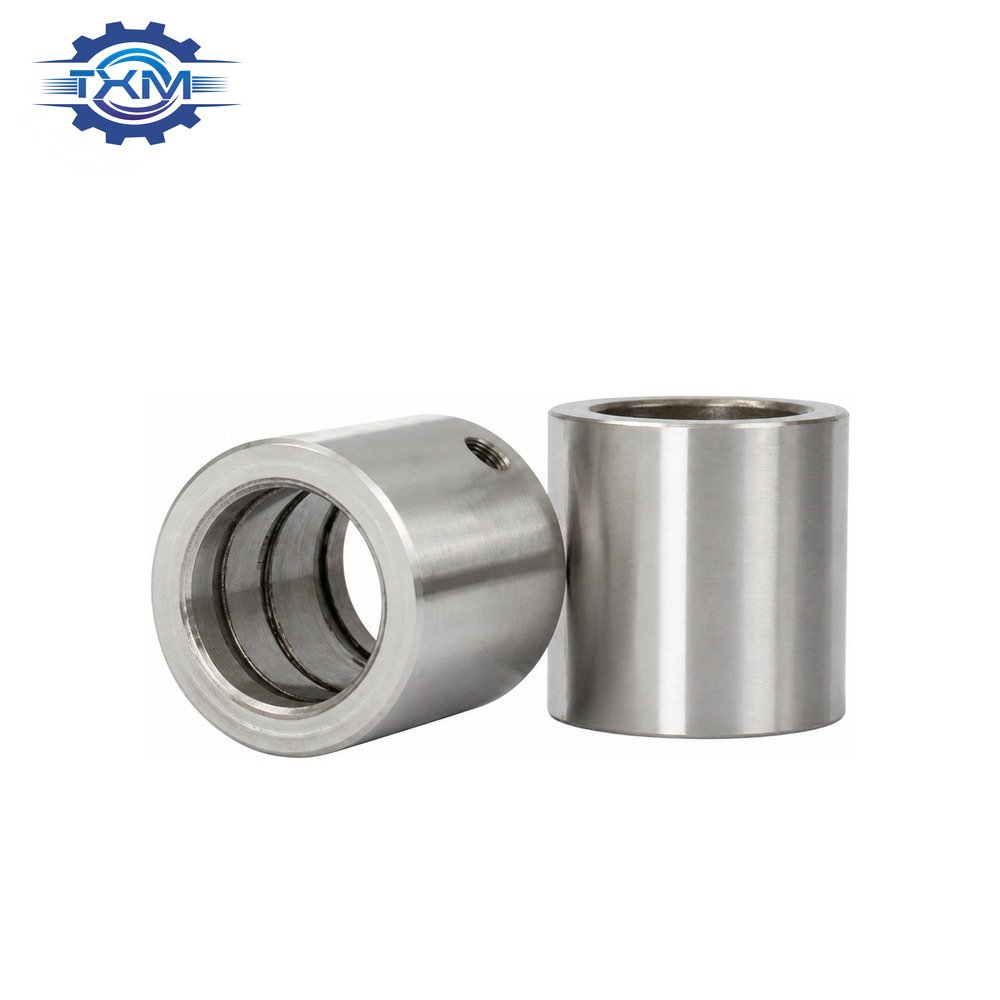

Precision Bushings & Sleeves
Precision bushings and sleeves are widely used in construction equipment, agricultural machinery, automotive systems, material handling equipment and industrial automation for positioning, guiding, spacing and rotating assemblies. All dimensions, tolerances, materials and surface finishes can be fully customized according to customer drawings for OEM applications.
Key Features
- Tight dimensional tolerance
- Excellent concentricity
- Wear and corrosion resistance
- Available in flanged
- stepped
- guide and spacer designs
- Fully customized OEM manufacturing.
Materials and Manufacturing Processes
| Item | Available Options |
|---|---|
| Materials | Carbon Steel / Stainless Steel / Alloy Steel / Customizable |
| Processes | CNC Turning, Precision Machining, Drilling, Chamfering, Surface Finishing |
| Dimensions | According to customer 2D/3D drawings |
| Tolerance | Critical dimensions and tolerances according to drawings and project requirements |
| Surface Finishes | Powder coating, galvanizing, plating, passivation, polishing or other finishes as required |
Typical Applications
General Industrial, industrial machinery, OEM equipment and custom fabrication projects.
Quality Inspection
First article inspection, in-process inspection and final inspection are available. Dimensional inspection reports can be provided according to project requirements.
Packaging
VCI bags, rust-preventive protection, dividers, reinforced cartons or export wooden cases are selected according to product size, weight and transportation requirements.
Reference Lead Time
| Order Quantity | Reference Lead Time |
|---|---|
| Up to 1 set | 10 days |
| Up to 5 sets | 20 days |
| Up to 10 sets | 30 days |
Reference only. Final pricing, tooling plan and delivery schedule are confirmed according to drawings, materials, quantity, inspection requirements and project complexity.
Request a Quote
Send us your inquiry and TXMFAB will review your requirements and provide a tailored quotation. If available, you may include reference information such as 2D/3D drawings, material, quantity, tolerances or surface-finish requirements.
