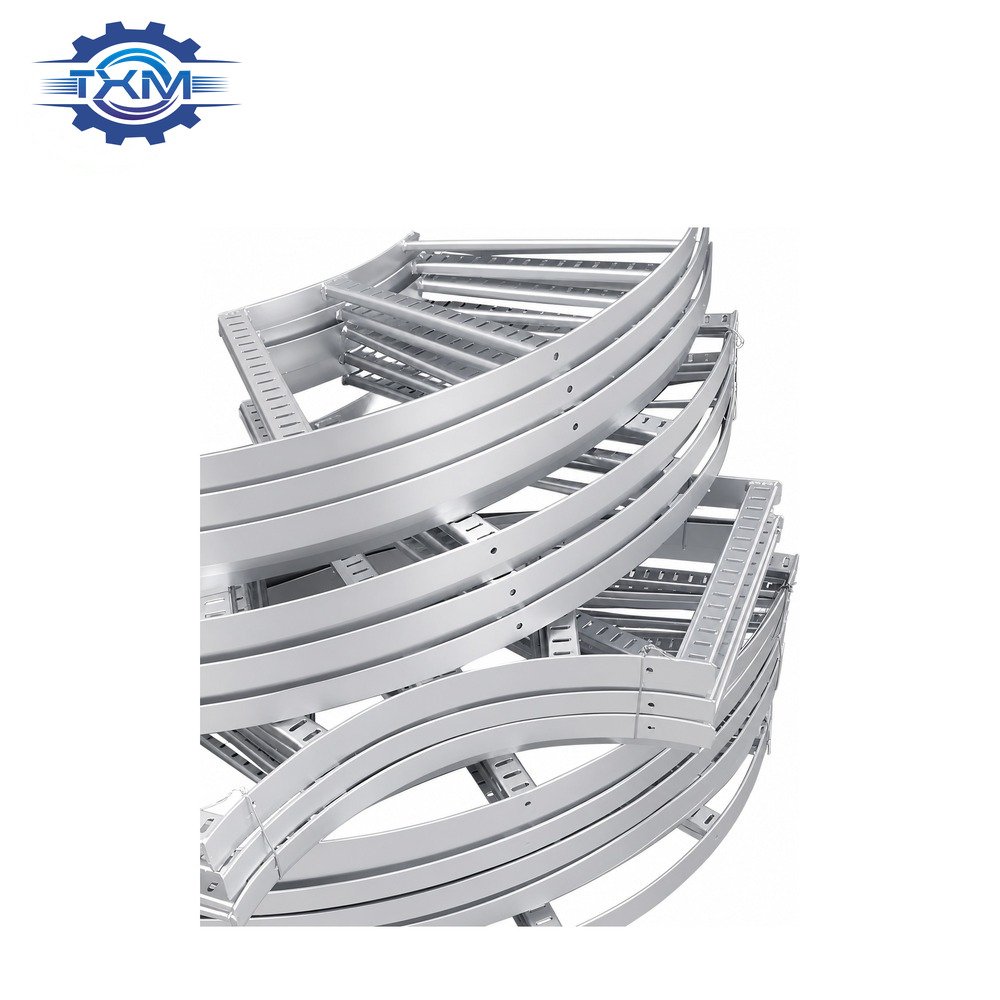

Marine Curved Cable Tray
Marine Curved Cable Trays are designed for directional cable routing in marine vessels and offshore structures. Manufactured through laser cutting, CNC bending and welding, they provide smooth cable transitions while maintaining high load capacity and corrosion resistance. Radius, width, dimensions and surface finishes can be fully customized according to OEM drawings for marine cable management applications.
Key Features
- Curved routing design
- Heavy-duty construction
- Corrosion resistant
- Custom sizes available
- OEM manufacturing
Materials and Manufacturing Processes
| Item | Available Options |
|---|---|
| Materials | Galvanized Steel / Carbon Steel / Stainless Steel / Customizable |
| Processes | Laser Cutting, Metal Stamping, CNC Bending, Welding, Hot-Dip Galvanizing |
| Dimensions | According to customer 2D/3D drawings |
| Tolerance | Critical dimensions and tolerances according to drawings and project requirements |
| Surface Finishes | Powder coating, galvanizing, plating, passivation, polishing or other finishes as required |
Typical Applications
Marine & Offshore, industrial machinery, OEM equipment and custom fabrication projects.
Quality Inspection
First article inspection, in-process inspection and final inspection are available. Dimensional inspection reports can be provided according to project requirements.
Packaging
VCI bags, rust-preventive protection, dividers, reinforced cartons or export wooden cases are selected according to product size, weight and transportation requirements.
Reference Lead Time
| Order Quantity | Reference Lead Time |
|---|---|
| Up to 1 set | 10 days |
| Up to 5 sets | 20 days |
| Up to 10 sets | 30 days |
Reference only. Final pricing, tooling plan and delivery schedule are confirmed according to drawings, materials, quantity, inspection requirements and project complexity.
Request a Quote
Send us your inquiry and TXMFAB will review your requirements and provide a tailored quotation. If available, you may include reference information such as 2D/3D drawings, material, quantity, tolerances or surface-finish requirements.
