Description

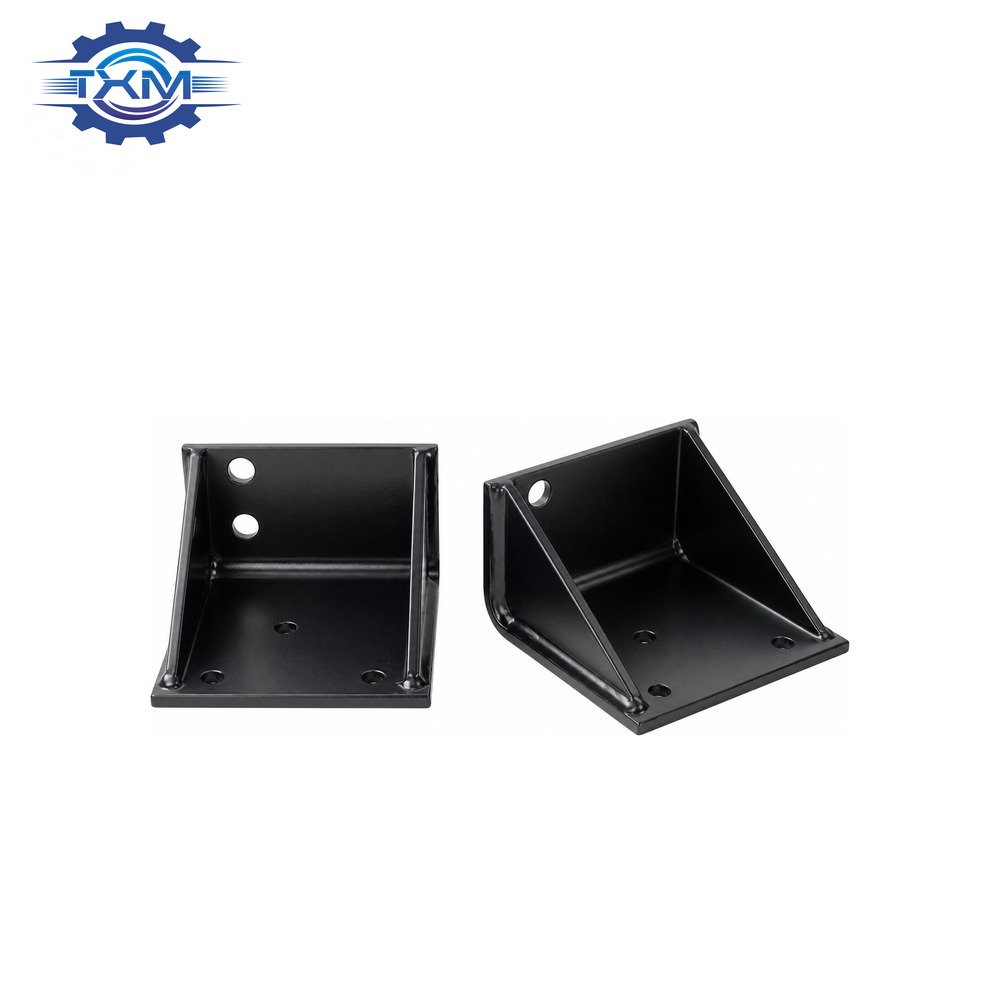

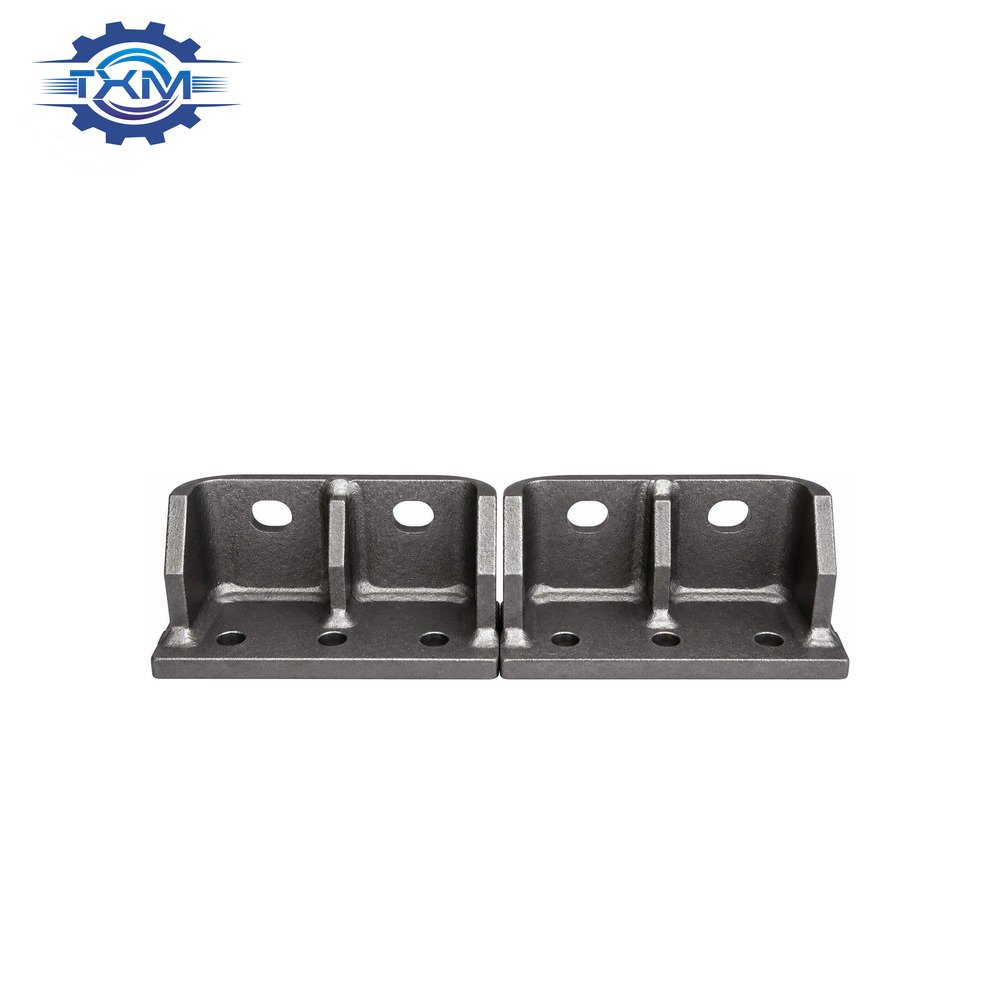

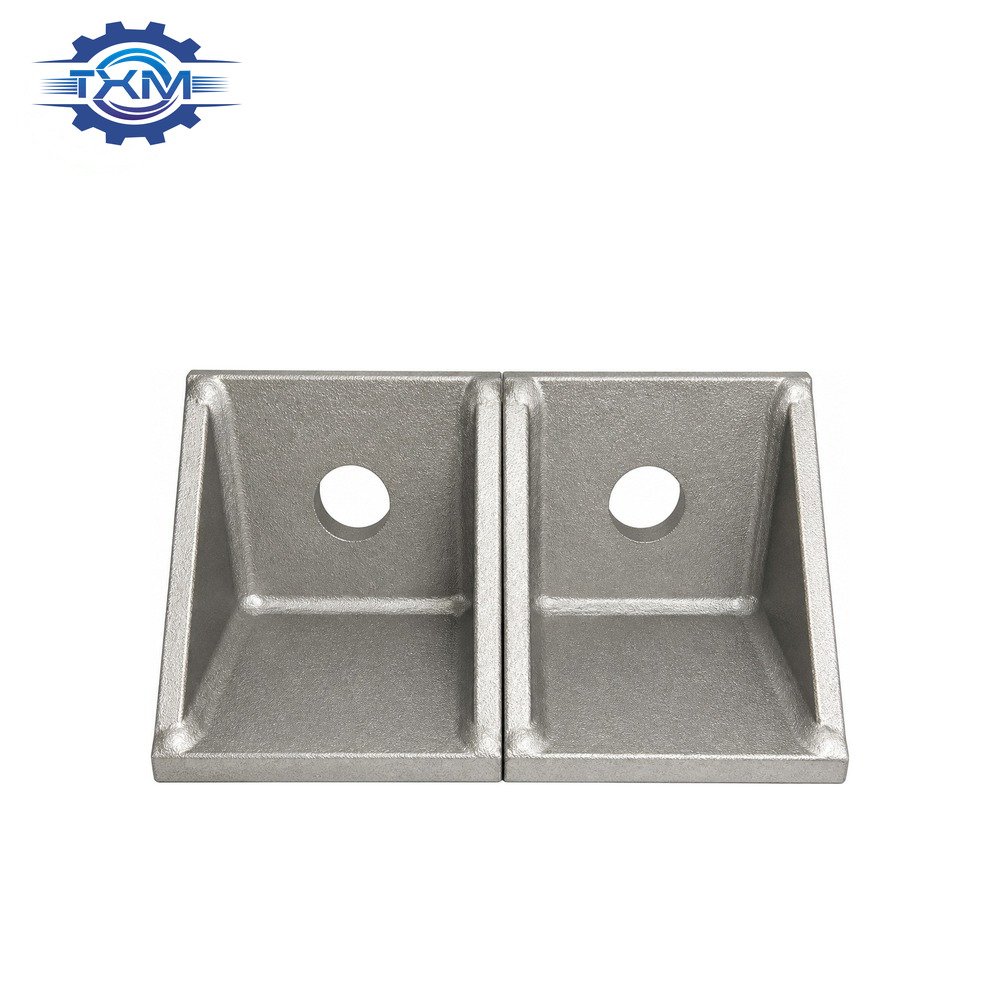

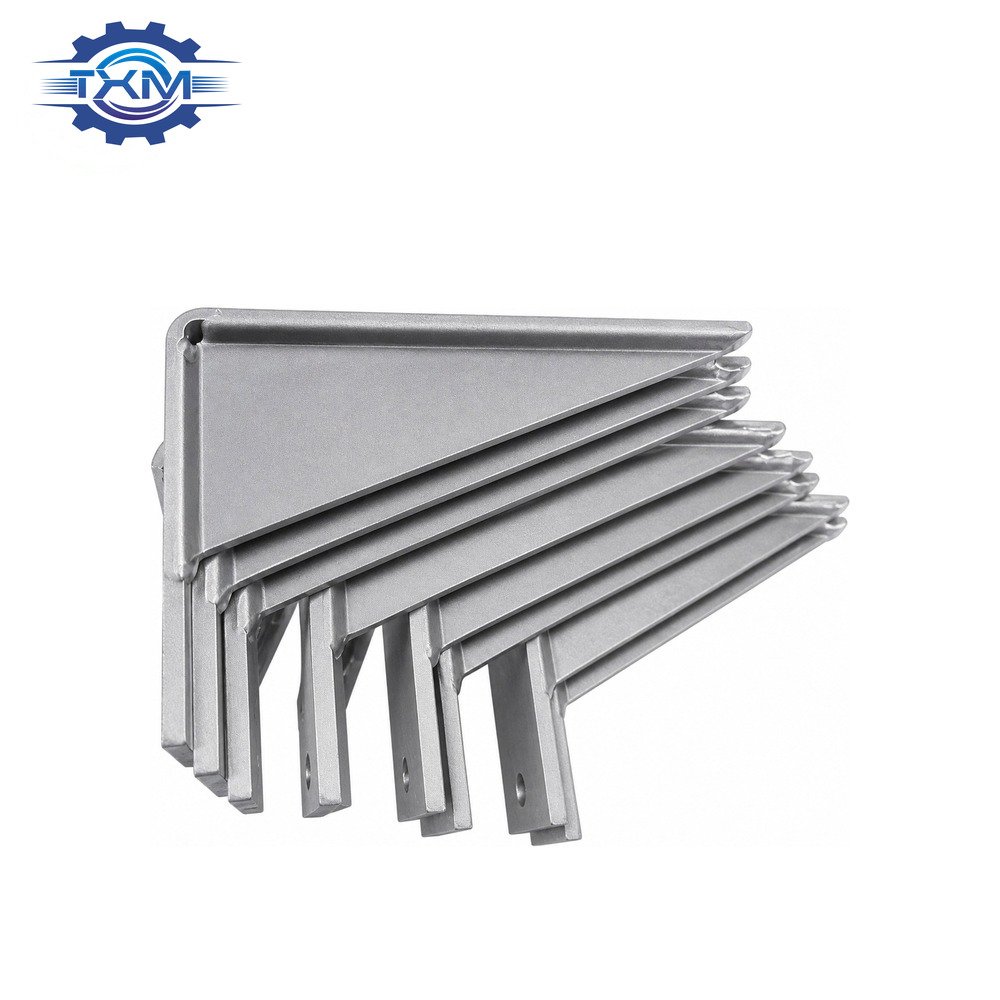

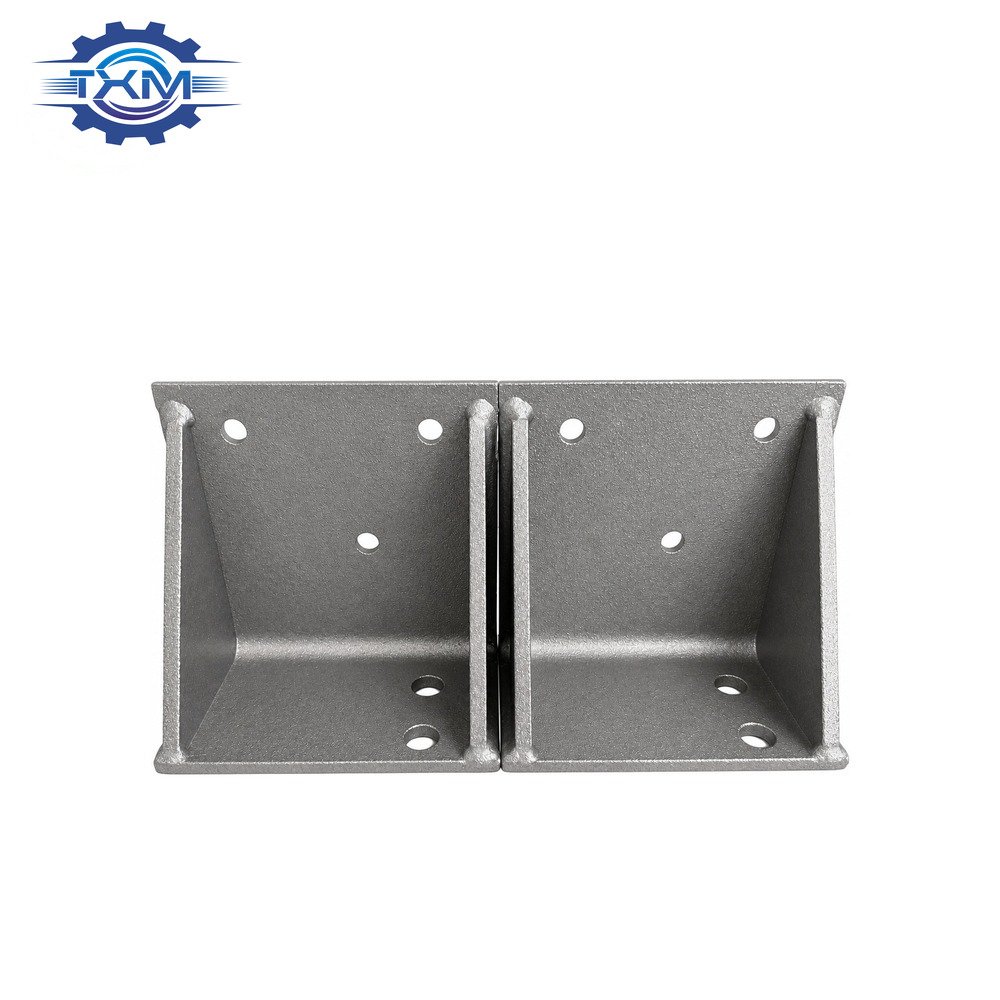

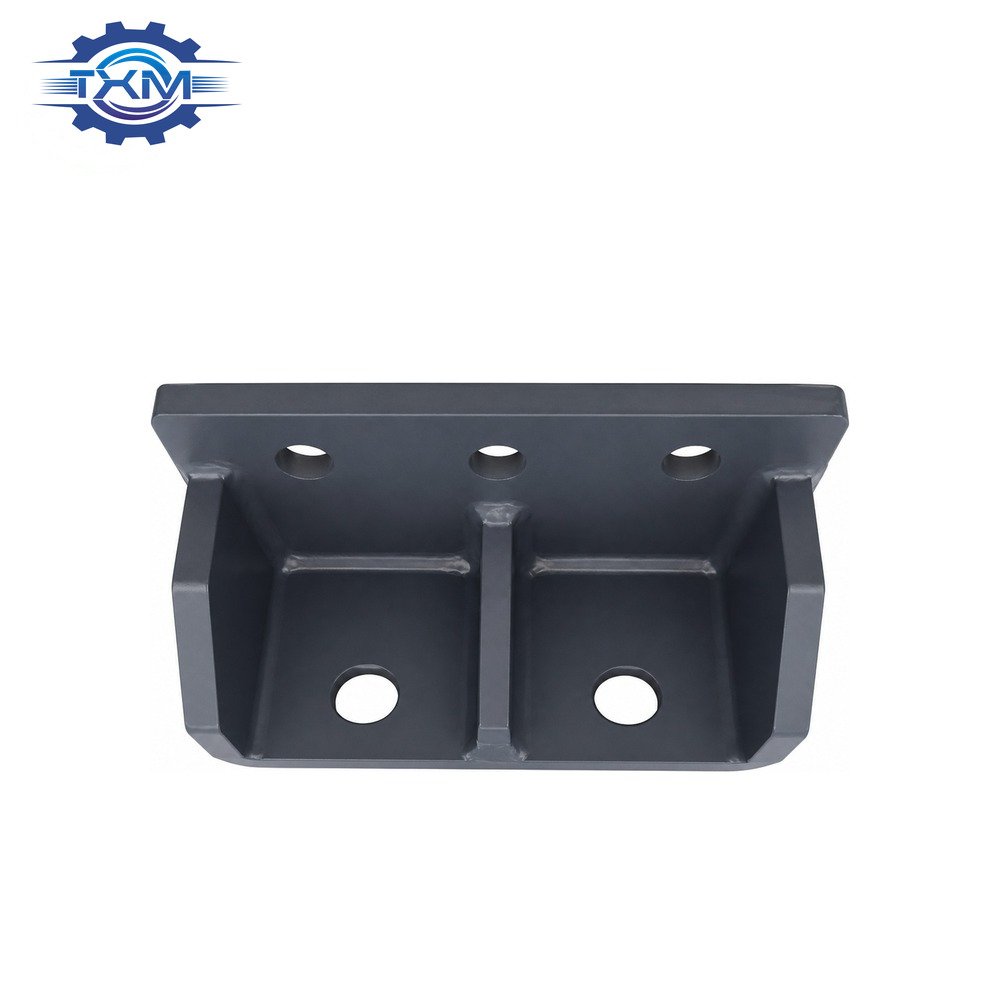

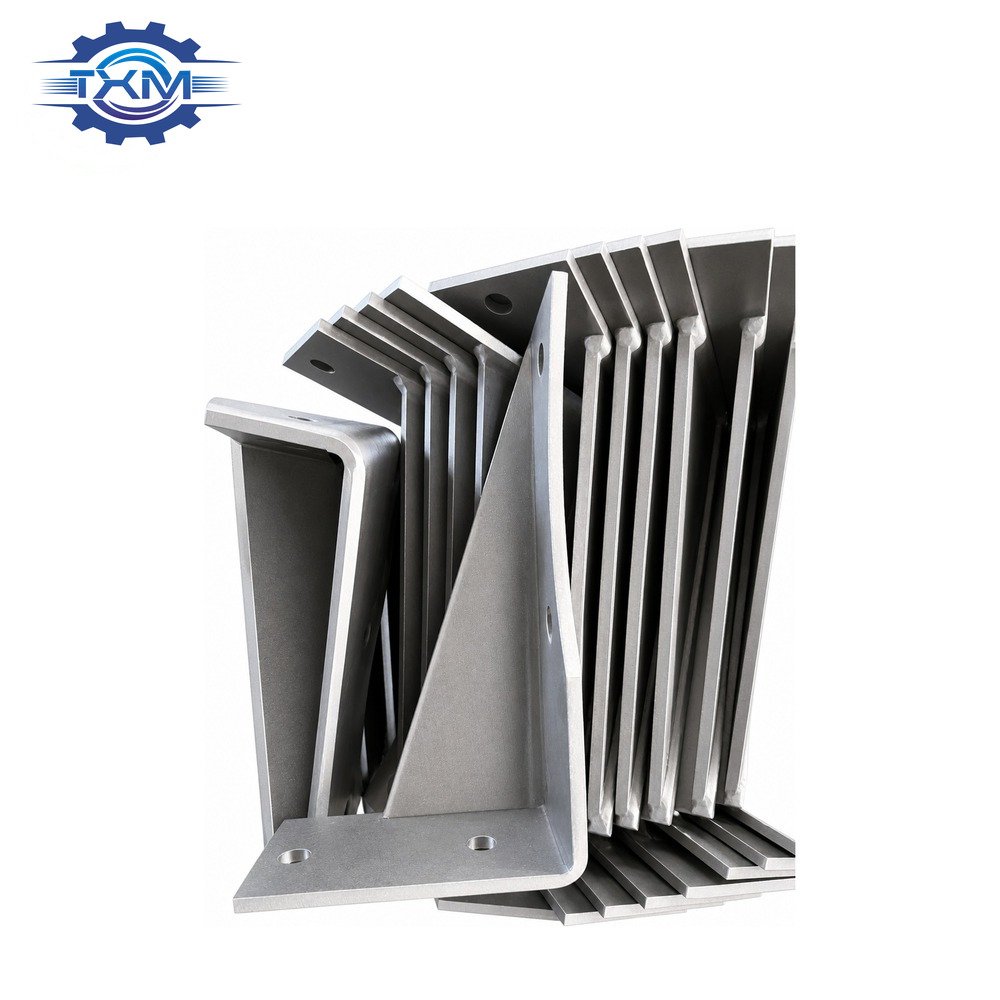

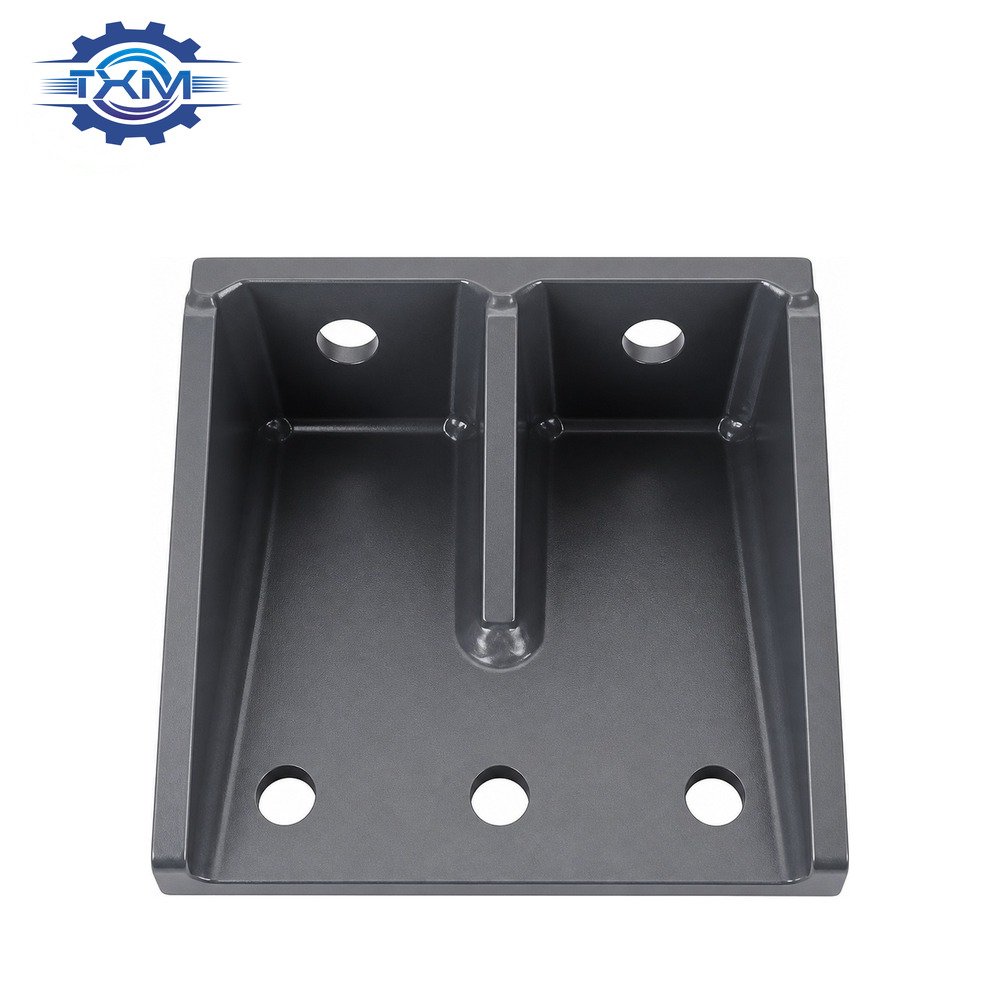

Heavy Duty Welded Gusset Brackets
Manufactured through laser cutting, CNC bending, welding and machining, these heavy-duty welded gusset brackets are designed for structural support and high-load mounting applications in industrial equipment, machinery, vehicles and steel structures. Dimensions, hole patterns, material thickness, welding configuration and surface finish can all be fully customized according to customer drawings.
Key Features
- Heavy-duty construction
- High-strength welding
- Reinforced gusset design
- Precision fabrication
- OEM available
Materials and Manufacturing Processes
| Item | Available Options |
|---|---|
| Materials | Carbon Steel / Stainless Steel / Aluminum / Customizable |
| Processes | Laser Cutting, CNC Bending, Welding, CNC Machining |
| Dimensions | According to customer 2D/3D drawings |
| Tolerance | Critical dimensions and tolerances according to drawings and project requirements |
| Surface Finishes | Powder coating, galvanizing, plating, passivation, polishing or other finishes as required |
Typical Applications
General Industrial, industrial machinery, OEM equipment and custom fabrication projects.
Quality Inspection
First article inspection, in-process inspection and final inspection are available. Dimensional inspection reports can be provided according to project requirements.
Packaging
VCI bags, rust-preventive protection, dividers, reinforced cartons or export wooden cases are selected according to product size, weight and transportation requirements.
Reference Lead Time
| Order Quantity | Reference Lead Time |
|---|---|
| Up to 1 set | 10 days |
| Up to 5 sets | 20 days |
| Up to 10 sets | 30 days |
Reference only. Final pricing, tooling plan and delivery schedule are confirmed according to drawings, materials, quantity, inspection requirements and project complexity.
Request a Quote
Send us your inquiry and TXMFAB will review your requirements and provide a tailored quotation. If available, you may include reference information such as 2D/3D drawings, material, quantity, tolerances or surface-finish requirements.
