Description

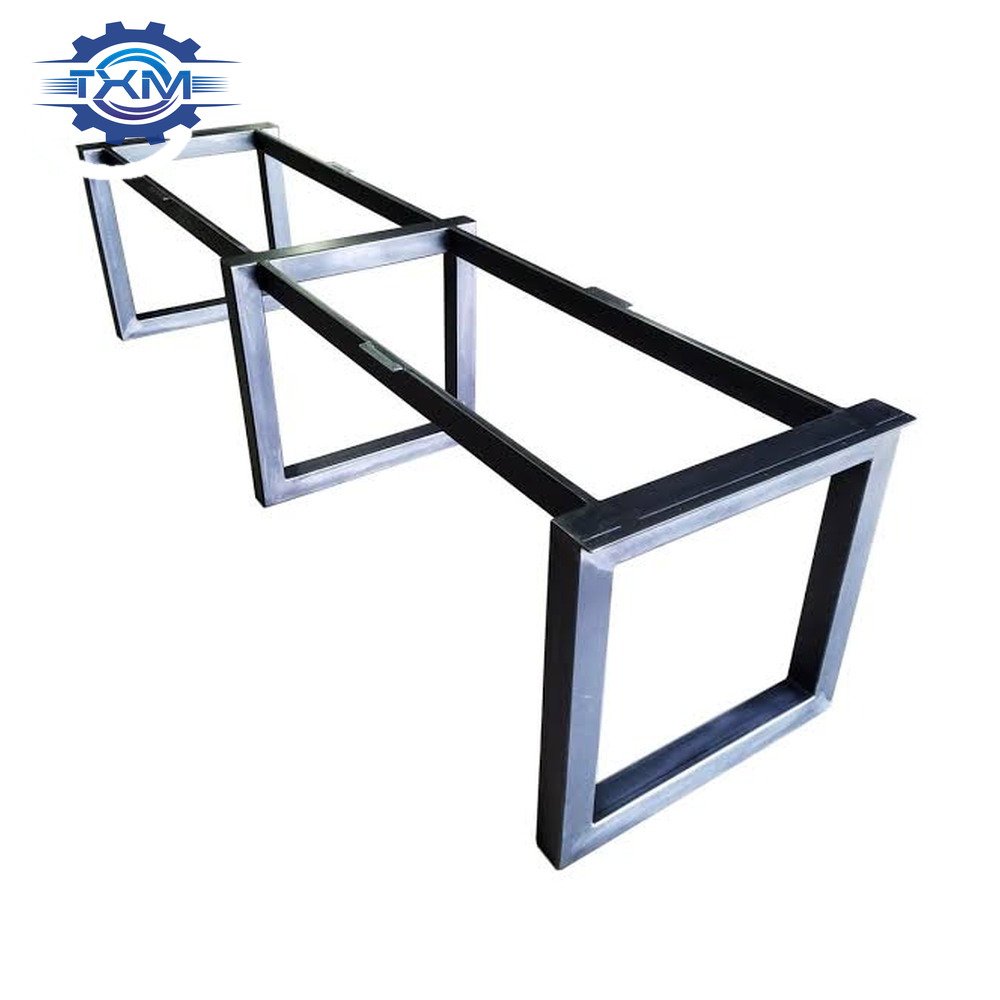

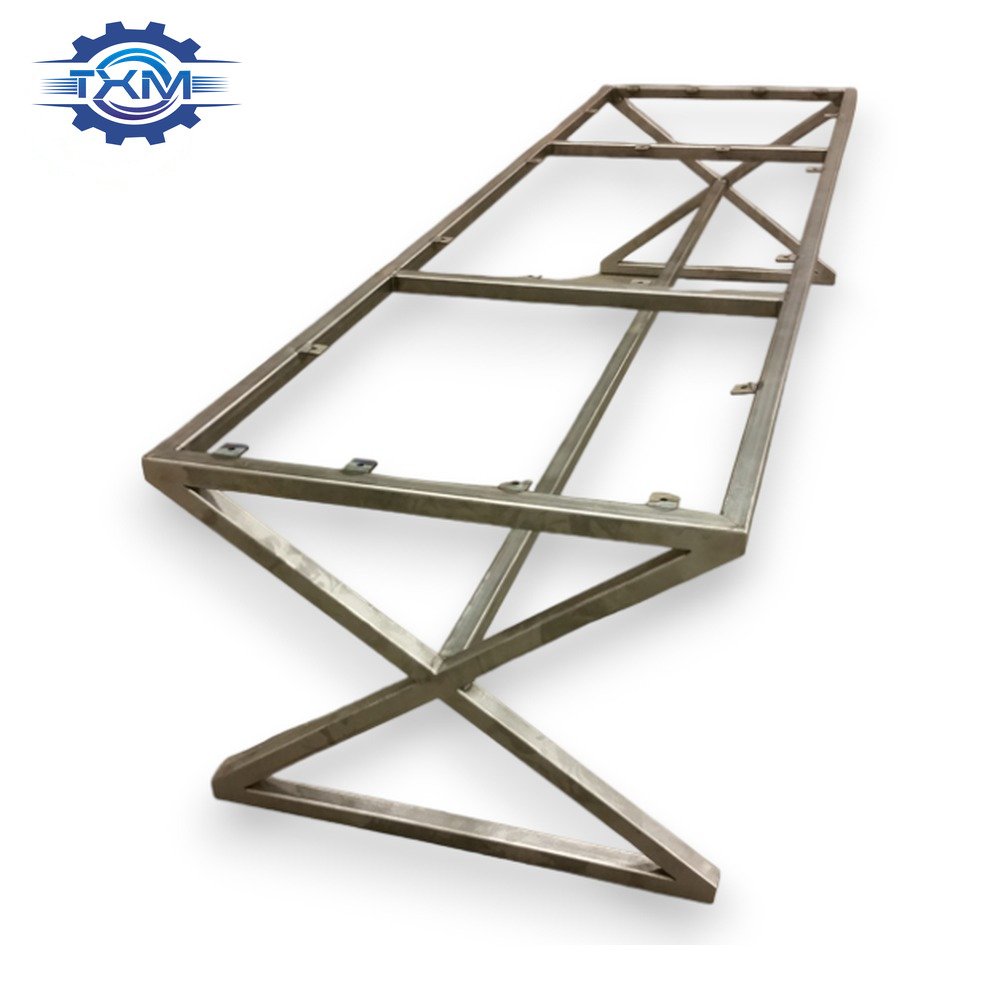

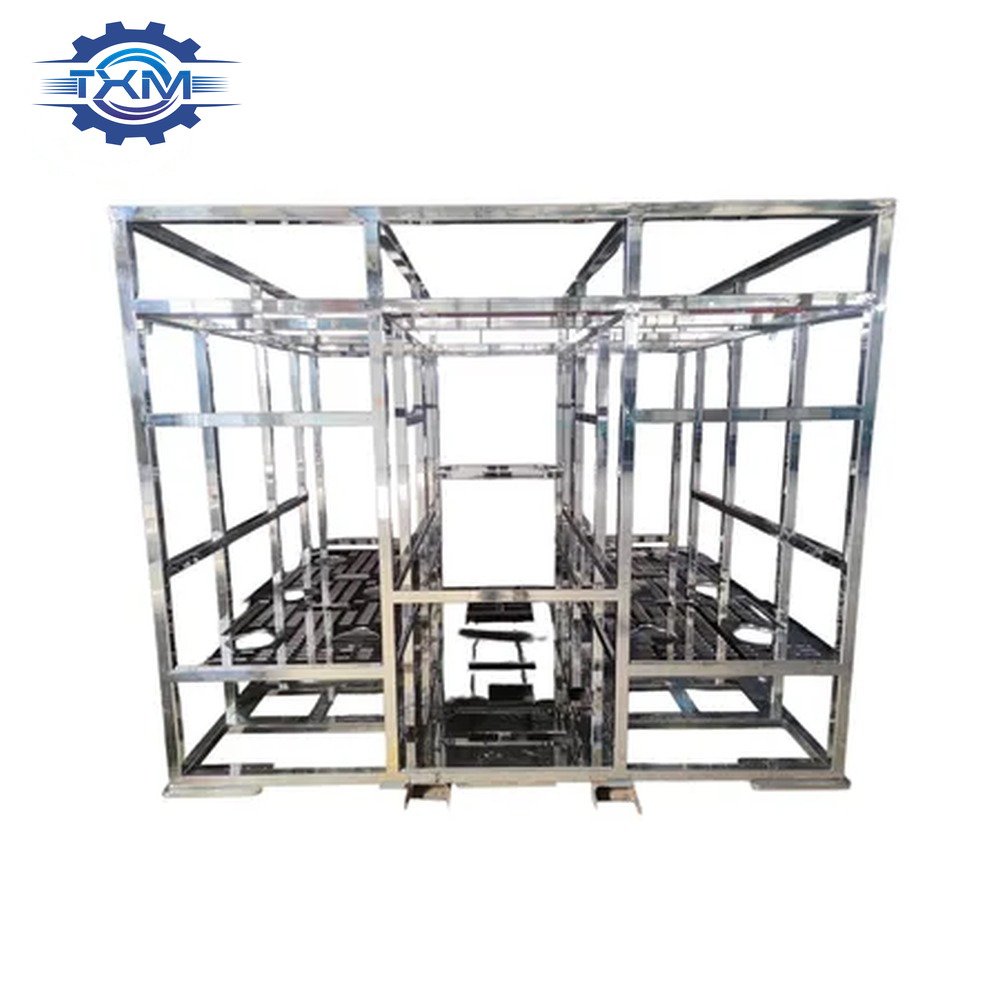

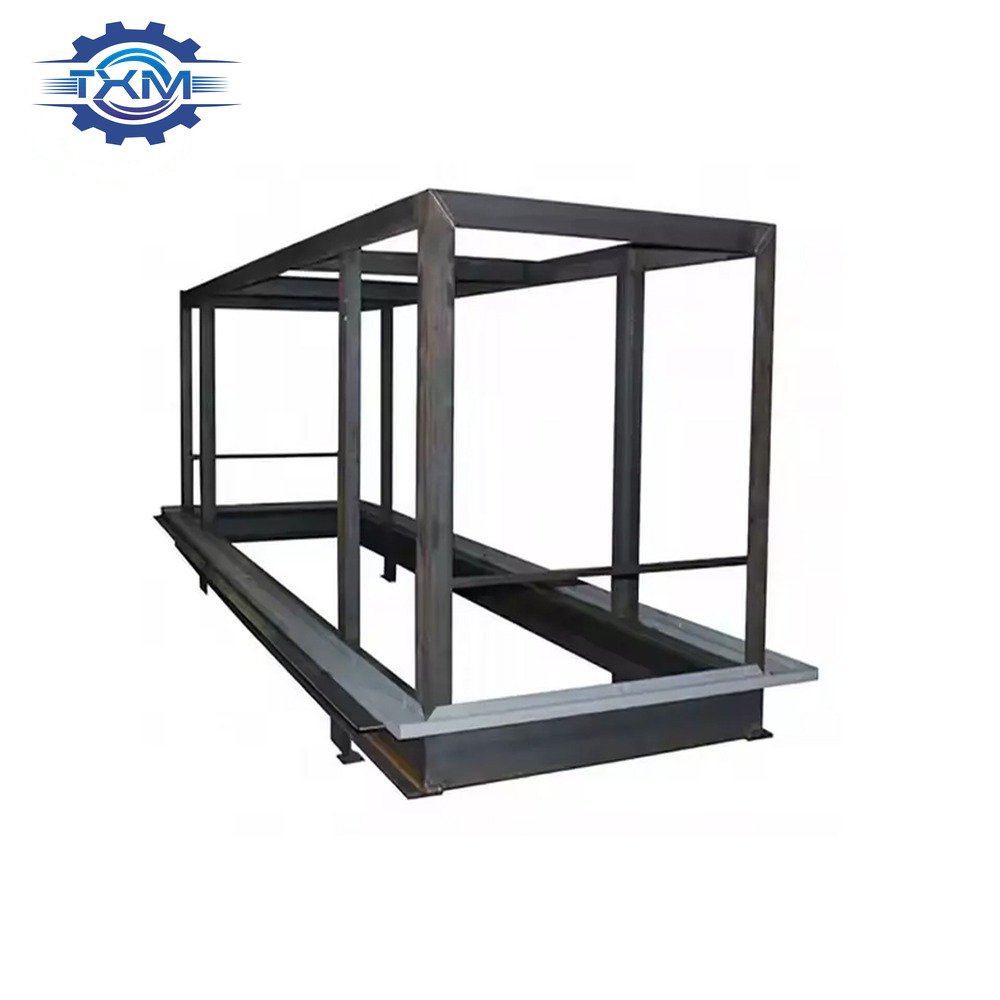

Custom Large Welded Frame Assemblies
Manufactured from structural steel or aluminum profiles, these custom welded frame assemblies are designed for industrial equipment, automation systems, machinery, cabinets and OEM projects. We provide complete fabrication services including profile cutting, precision welding, machining, surface finishing and final assembly according to customer drawings.
Key Features
- Large welded structures
- High structural stability
- Excellent dimensional accuracy
- Complex assembly capability
- OEM available
Materials and Manufacturing Processes
| Item | Available Options |
|---|---|
| Materials | Carbon Steel / Stainless Steel / Aluminum / Customizable |
| Processes | Laser Cutting, Profile Cutting, Welding, Assembly, Grinding, Surface Finishing |
| Dimensions | According to customer 2D/3D drawings |
| Tolerance | Critical dimensions and tolerances according to drawings and project requirements |
| Surface Finishes | Powder coating, galvanizing, plating, passivation, polishing or other finishes as required |
Typical Applications
General Industrial, industrial machinery, OEM equipment and custom fabrication projects.
Quality Inspection
First article inspection, in-process inspection and final inspection are available. Dimensional inspection reports can be provided according to project requirements.
Packaging
VCI bags, rust-preventive protection, dividers, reinforced cartons or export wooden cases are selected according to product size, weight and transportation requirements.
Reference Lead Time
| Order Quantity | Reference Lead Time |
|---|---|
| Up to 1 set | 10 days |
| Up to 5 sets | 20 days |
| Up to 10 sets | 30 days |
Reference only. Final pricing, tooling plan and delivery schedule are confirmed according to drawings, materials, quantity, inspection requirements and project complexity.
Request a Quote
Send us your inquiry and TXMFAB will review your requirements and provide a tailored quotation. If available, you may include reference information such as 2D/3D drawings, material, quantity, tolerances or surface-finish requirements.
